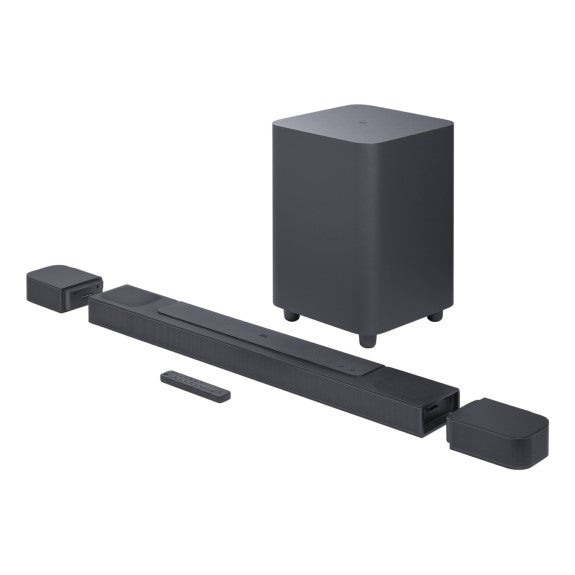

JBL Bar800 5.1.2 720W Soundbar

JBL Bar800 5.1.2 720W Soundbar

Model:

5468770

Ipn:

851621

Skip to product information
1 of 1
Regular price $945.00
Regular price Was . Sale price
$945.00
Taxes included.
Show More

How do I get it?

You have not set a location

Collapsible content

Overview

description

JBL BAR800 5.1.2 720W SOUNDBAR TRUE ATMOS 720W

specifications

  • Brand
    JBL
  • IPN
    851621
  • Model
    5468770
  • Manufacturer's Warranty
    2 Years
  • Size
    720W
  • Width
    48 mm
  • Height
    100 mm
  • Depth
    38 mm
  • Model
    BAR 800 (soundbar unit), BAR 800 SURROUND (detachable speaker), BAR 800 SUB (subwoofer unit)
  • Sound system
    5.1.2 channel
  • Power supply
    100 - 240V AC, ~ 50/60Hz
  • Total speaker power output (Max @THD 1%)
    720W
  • Soundbar output power (Max @THD 1%)
    340W
  • Surround speaker output power (Max @THD 1%)
    2x 40W
  • Subwoofer output power (Max @THD 1%)
    300 W
  • Soundbar transducer
    3x (46x90)mm racetrack drivers, 3x 0.75” (20mm) tweeters, 2x 2.75” (70mm) up-firing full-range drivers
  • Surround speaker transducer
    1x (46x90)mm racetrack driver
  • Subwoofer transducer
    10” (260mm)
  • Networked standby power
    < 2.0W
  • Operating temperature
    0°C - 45°C
  • Lithium battery
    3.635V, 3283mAh
  • Detachable surround speaker playtime
    up to 10 Hours (may vary according to content type and volume level)
  • HDMI video input
    1
  • HDMI video output (with Enhanced Audio Return Channel, eARC)
    1
  • HDMI HDCP version
    2.3
  • HDR pass-through
    HDR10, Dolby Vision
  • Frequency response
    35Hz - 20kHz (-6dB)
  • Audio inputs
    1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
  • USB port
    Type A
  • USB rating
    5V DC, 0.5A
  • Supported file format
    MP3
  • MP3 codec
    MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
  • MP3 sampling rate
    16 - 48 kHz
  • MP3 bitrate
    80 - 320 kpbs
  • Bluetooth version
    5.0
  • Bluetooth profile
    A2DP 1.2, AVRCP 1.5
  • Bluetooth transmitter frequency range
    2400MHz - 2483.5MHz
  • Bluetooth transmitter power
    <15dBm (EIRP)
  • Wi-Fi network
    IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
  • 2.4G Wi-Fi transmitter frequency range
    2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
  • 2.4G Wi-Fi transmitter power
    < 20dBm (EIRP) 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
  • 5G Wi-Fi transmitter power
    5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.47 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
  • 2.4G wireless transmitter frequency range
    2406 - 2474MHz
  • 2.4G wireless transmitter power
    <10dBm (EIRP)
  • Main soundbar
    x1
  • Detachable wireless surround speakers
    x2
  • Wireless subwoofer
    x1
  • Remote control with 2 x batteries
    Yes
  • Power cords
    up to 8pcs depending on region SKUs
  • HDMI cable
    x1
  • L-shape wall-mount bracket (main bar)
    x2
  • U-shape wall-mount bracket
    x2 (for surround speakers) kit with screws
  • Side caps
    x4
  • Quick start guide
    Yes
  • Safety instruction and Warranty card
    Yes
  • Wall mount template
    Yes

features

  • True Dolby Atmos® surround sound
  • Real surround sound with detachable surround speakers
  • 10” wireless subwoofer
  • PureVoice dialogue enhancement technology
  • 720W output power
  • Built-in Wi-Fi with AirPlay, Alexa Multi-Room
  • Music and Chromecast built-in™
  • Works with voice assistant-enabled speakers
  • HDMI eARC with 4K Dolby Vision pass-through
  • Easy sound calibration
  • JBL One App
