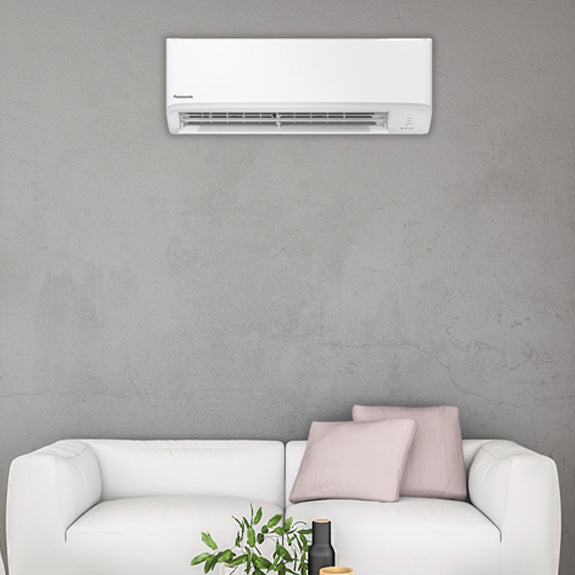

Panasonic 3.5kW/4.3kW Split Reverse Inverter Air Conditioner

Panasonic 3.5kW/4.3kW Split Reverse Inverter Air Conditioner

Model:

CS/CU-Z35XKR

Ipn:

825342

Skip to product information
1 of 4
Regular price $1,329.00
Regular price Was . Sale price
$1,329.00

Clearance item

This model has been reduced to clear and may have limited availability.

Taxes included.
Clearance

Include a Back Up Plan?

Learn more
Show More

How do I get it?

You have not set a location

Collapsible content

Overview

description

This Panasonic Split Reverse Inverter Air Conditioner puts your home in an ideal situation all year-round. With 3.5kW cooling and 4.3kW heating, you are ensured to sit comfortably no matter the season. With the added feature of the NANOE-X Air Purifier, you will always breathe the freshest air making your relaxing time at home even easier.

specifications

  • Brand
    Panasonic
  • IPN
    825342
  • Model
    CS/CU-Z35XKR
  • Manufacturer's Warranty
    5 Years
  • Size
    3.5/4.0kW
  • Width
    779 mm
  • Height
    290 mm
  • Depth
    209 mm
  • Model (240V / 1 Phase / 50Hz)
    CS-Z35XKRW [CU-Z35XKR]
  • Cooling / Heating Capacity (min-max) kW
    3.50 [1.00-4.20] / 4.00 [0.90-5.70]
  • Cooling / Heating Capacity (min-max) Btu/h
    11,900 [3,410-14,300] / 13,600 [3,070-19,400]
  • Air Flow Indoor L/s
    193/202
  • Dehumidification L/h
    2.0
  • Electrical Data Running Current A
    3.50/3.80
  • Electrical Data Max Current A
    7.2
  • Electrical Data Power Input (min-max) kW
    0.80 (0.22-1.29) /0.86 (0.19-1.65)
  • AEER / EER W/W
    4.33/4.38
  • ACOP / COP W/W
    4.61/4.65
  • Star Rating Hot Climate
    Cooling: 4.5, Heating: 3.5
  • Star Rating Average Climate
    Cooling: 4, Heating: 3.0
  • Star Rating Cold Climate
    Cooling: 4.5, Heating: 3.5
  • TCSPF & HSPF Residential/ Commercial Hot Climate
    TCSPF: 6.49/7.36, HSPF: 5.41/5.41
  • TCSPF & HSPF Residential/ Commercial Average Climate
    TCSPF: 5.95/8.05, HSPF: 4.89/5.09
  • TCSPF & HSPF Residential/ Commercial Cold Climate
    TCSPF: 6.18/9.40, HSPF: 4.25/4.55
  • Sound Pressure Level dB(A) Indoor (H / L / Q-Lo)
    Cooling: 44/26/19, Heating: 44/29/22
  • Sound Pressure Level dB(A) Outdoor (H / Q-Lo)
    Cooling: 49/44, Heating: 50/45
  • Sound Power Level dB Indoor (H / L / Q-Lo)
    Coolng: 60/42/35, Heating: 60/45/38
  • Sound Power Level dB Outdoor (H / Q-Lo)
    Cooling: 64/59, Heating: 65/60
  • Refrigerator Pipe Diameter Liquid Side mm/(inch)
    ø 6.35 (1/4)
  • Refrigerator Pipe Diameter Gas Side mm/(inch)
    ø 9.52 (3/8)
  • Pipe Extension Length min-max (m)
    3-20
  • Maximum Elevation Length m
    15
  • Pipe Length For Additional Gas m
    7.5
  • Additional Gas Amount g/m
    10
  • Power Supply
    Outdoor
  • Operating Range (Outdoor) Cooling/Heating Degree °C
    10 ~ +46/-15 ~ +24
  • Refrigerant Type
    R32

features

  • 24hr nanoe™X Air Purification
  • Built in Wi Fi with Smart Control
  • Intelligent ECO+ A.I.
  • iAuto-X
  • Standalone Air Purification System
  • Odour-Removing Function
  • Quiet Operation
  • Inverter Control
  • Hot Start Control
  • Powerful Mode
  • Sleep Mode
  • Fan Mode
  • Soft Dry Operation Mode
  • Airflow Direction Control (Up & Down)
  • Manual Horizontal Airflow Direction Control
  • Auto Changeover (Inverter)
  • 24-Hour Dual On & Off Real Setting Timer
  • Demand Response Enabling Device (DRED)
  • 3rd Party Connectivity
  • LCD Wireless Remote Control
  • Optional Wired Remote Control
  • Random Auto Restart
  • Blue Fin Condenser
  • Self-Diagnostic Function
  • High Energy Efficiency
  • Anti Corrosion
  • Built Tough to Last
  • Top-Panel Maintenance Access
  • Removable, Washable Panel Filter
  • Easy Installation & Servicing
  • Compact Outdoor Unit
  • Long Piping
